Flow Indicators

For Water, Air, Gas and Oil

A flow indicator can be used with water, air, gas and oil and is helpful where inspection of the pipeline is required. Indicators are also excellent for verifying flow cooling, quenching or lubricating, and can be used on equipment such as pumps, engines, gears and compressors. Our inventory contains a wide variety of flow indicators and we guarantee low prices and fast turnaround times on all our products. There's no project too big or too small for us, we are committed to providing the best possible customer service for each and every one of our clients. We have over 20 years experience selling and shipping flow indicators around the world, so don't hesitate to request a quote online or call us for more information!

Series RVO/U

Compact indicators and switces for low flat rates

Clear flow tube allows for view of process and scale. Full scale flow ranges from 60cc/m to 40 GPM a

nd 4 SCFH to 400 SCFM. Connection sizes from 1/4 inch to 1-inch NPT or BSP. Construction materials include brass or stainless steel, and it offers a calibrated scale for easy field adjustaility. It's spring loaded with mechanical design mounts in any orientation. Pressure ratings to 145 PSIG.

Add to Quote

Series Y, U, F, M

High capacity indicators, switches and transmitters

Easy to read with a large scale design that rotates, an optional field adjustable switches for hazar

dous and non-hazardous locations. Full scale flow ranges from 1 to 1200 GPM and 10 SCFH to 10,000 SCFM. Connection sizes from 1/4 inch to 8-inch NPT or BSP. Construction materials include brass, 316L S.S.,cast iron, aluminum or carbon steel. It's spring loaded with mechanical design mounts in any orientation. Pressure ratings to 2000 PSIG, optional 4-20MA transmitter.

Add to Quote

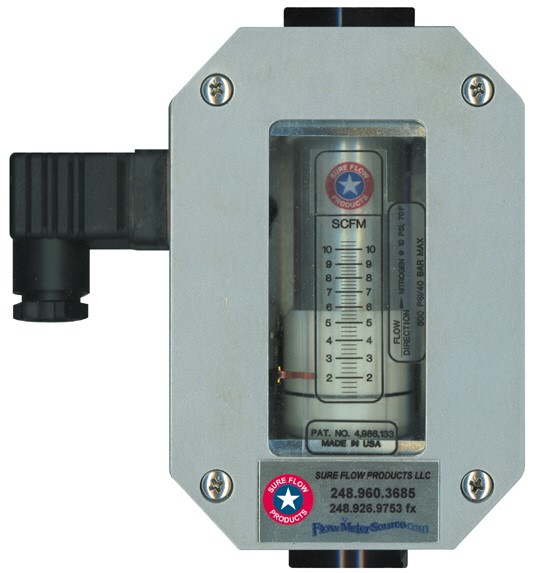

Series HFR, HFS, HFT

HIgh pressure, high temperature indicators, switches and transmitters

Spring loaded mechanical design can mount in any orientation. Viscosity compensating for liquids up

to 500 SSU and pressure ratings up to 6000 PSIG. Full scale flow ranges from 1 to 150 GPM and 10 SCFM to 1300 SCFM. Connection sizes range from 1/4-inch to 8-inch NPT, BSP, SAE or flange. Construction materials include brass, stainless steel or aluminum. Optional 4.20mA transmitter, field adjustable switches, and high temperature design up to 600 degrees F (315 C).

Add to Quote

Series DKM, DKM/A, DKG

Viscosity compensating indicators and switches

Maintains accuracy regardless of viscosity fluctuations with a calibrated scale for easy field adjus

tability. Full scale flow ranges from 60cc/m to 40 GPM and 4 SCFH to 400 SCFM and pressure ratings up to 4500 PSIG. Connection sizes range from 1/4-inch to 1-inch NPT or BSP. Spring loaded mechanical design can mount in any orientation. Construction materials include brass or stainless steel, with optional field adjustable switches.

Add to Quote

Series FIS, FSR

Low cost indicators with switch

Reads in GPM and LPM scale with connection sizes from 1/2-inch to 2-inch NPT, BSP or SAE. Full scale

flow ranges from 4 to 100 GPM (16 to 380 LPM) and 10 SCFM to 250 SCFM. Clear flow tube allows for view of process and scale, and spring loaded mechanical design can mount in any orientation. Pressue up to 325 PSIG (liquids) and 125 PSIG (air). Construction materials include polysulphone flow tube with brass, SS or PVC end fittings.

Add to Quote

Series TT

Cost effective impeller flow meter for light viscosity fluids

Nema 4x display enclosure with Pulse, 0-5 VDC, or 4-20mA transmitter outputs. Pressure ratings to 50

0 PSIG and full scale flow ranges from 15 to 50 GPM. Connection sizes from 1/2-inch to 1/inch NPT or flange, and construction materials include stainless steel shaft with acetal copolymer impeller. Optional clear flow cover available which allows for view of process.

Add to Quote

Series KM

Affordable flow rate indicator

Reads in GPM and LPM scale with clear flow tube that allows for view of process and scale. Pressure

ratings up to 145 PSIG with full scale flow ranges from 6 GPH to 220 GPM and connection sizes from 1/4-inch to 3-inch NPT or BSP. Construction materials include PVC, polysolphone or PVDF. Usable with water, oil, air and gas.

Add to Quote

Series U3, F3, M3

High capacity indicators, switches and transmitters

Easy to read large scale design that rotates. Low pressure drop with spring loaded mechanical design

that can mount in any orientation. Connection sizes from 1/4-inch to 3-inch NPT, BSP or flange and full scale flow ranges from 1 to 250 GPM. Optional 4-20mA transmitter and field adjustable switches for hazardous and non-hazardous locations.

Add to Quote

Series RM

Durable rotameter OEM flow rate indicator

Construction materials include glass, acrylic, PVC or polysulphone for the body and 316 stainless st

eel, PVC, polysulphone or Hastelloy C for the float. Connection sizes from 1/8-inch to 2-inch NPT or tube connections. Full scale flow rates from 0.065 ML/M to 175 GPM. Pressure ratings up to 150 PSIG and temperature ratings up to 200 degrees F. Optional shielded/armored and panel mount available.

Add to Quote
