Flow Meters

For Water

There are a wide variety of flow meters that you can get to monitor water flow. We have a great selection of products that you can choose from, including many that have the option to add switches, indicators and transmitters as well. We have been excelling in this industry for over 20 years and are always excited to serve new customers. Our team of engineers is ready to speak with you to discuss the flow meters for water that we have in stock. If you have a better idea of what you are looking to buy, fill out on quote request and one of our professional staff members will contact you to solidify your purchase. We can ship to anywhere in the world and will make sure your order works within your budget and arrives on time.

Series RVM/U

Low Cost Flow Switch

Full scale flow ranges from 60cc/m to 40 GPM and 4 SCFH to 400 SCFM. Connection sizes from 1/8 inch

to 1-inch NPT or BSP. Construction materials include brass or stainless steel, and it offers a calibrated scale for easy field adjustaility. It's spring loaded with mechanical design mounts in any orientation. Pressure ratings to 4500 PSIG.

Add to Quote

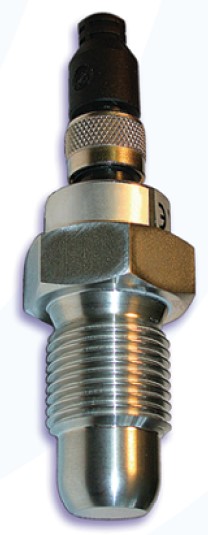

Series TS

Thermal Flow Switch

Switch with no moving parts that operates with or without liquids containing particulate or debris.

1/2-inch male NPT connection, mounts in pipe sizes from 1/4 to 2 inches. Compact durable design with stainless steel construction. Simple fail sale On/Off solid state switch with no adjustments. Offering easy installation using a mount in standard pipe tee. Low cost, ideal for end users and OEMs.

Add to Quote

Series RVO/U

Compact indicators and switces for low flat rates

Clear flow tube allows for view of process and scale. Full scale flow ranges from 60cc/m to 40 GPM a

nd 4 SCFH to 400 SCFM. Connection sizes from 1/4 inch to 1-inch NPT or BSP. Construction materials include brass or stainless steel, and it offers a calibrated scale for easy field adjustaility. It's spring loaded with mechanical design mounts in any orientation. Pressure ratings to 145 PSIG.

Add to Quote

Series Y, U, F, M

High capacity indicators, switches and transmitters

Easy to read with a large scale design that rotates, an optional field adjustable switches for hazar

dous and non-hazardous locations. Full scale flow ranges from 1 to 1200 GPM and 10 SCFH to 10,000 SCFM. Connection sizes from 1/4 inch to 8-inch NPT or BSP. Construction materials include brass, 316L S.S.,cast iron, aluminum or carbon steel. It's spring loaded with mechanical design mounts in any orientation. Pressure ratings to 2000 PSIG, optional 4-20MA transmitter.

Add to Quote

Series HFR, HFS, HFT

HIgh pressure, high temperature indicators, switches and transmitters

Spring loaded mechanical design can mount in any orientation. Viscosity compensating for liquids up

to 500 SSU and pressure ratings up to 6000 PSIG. Full scale flow ranges from 1 to 150 GPM and 10 SCFM to 1300 SCFM. Connection sizes range from 1/4-inch to 8-inch NPT, BSP, SAE or flange. Construction materials include brass, stainless steel or aluminum. Optional 4.20mA transmitter, field adjustable switches, and high temperature design up to 600 degrees F (315 C).

Add to Quote

Series DKM, DKM/A, DKG

Viscosity compensating indicators and switches

Maintains accuracy regardless of viscosity fluctuations with a calibrated scale for easy field adjus

tability. Full scale flow ranges from 60cc/m to 40 GPM and 4 SCFH to 400 SCFM and pressure ratings up to 4500 PSIG. Connection sizes range from 1/4-inch to 1-inch NPT or BSP. Spring loaded mechanical design can mount in any orientation. Construction materials include brass or stainless steel, with optional field adjustable switches.

Add to Quote

Series SFB, SFP

High temperature sight flow meters

Sight flow indicators for liquids, gases and air coming in either ball or paddle (spinner) style. Co

nnection sizes range from 1/4-inch to 1-1/2-inch NPT or BSP with pressure up to 232 PSIG/16 bar and temperatures up to 400 degree F (205 C). Construction materials include stainless steel or bronze with borosilicate lens and viton seals.

Add to Quote

Series FIS, FSR

Low cost indicators with switch

Reads in GPM and LPM scale with connection sizes from 1/2-inch to 2-inch NPT, BSP or SAE. Full scale

flow ranges from 4 to 100 GPM (16 to 380 LPM) and 10 SCFM to 250 SCFM. Clear flow tube allows for view of process and scale, and spring loaded mechanical design can mount in any orientation. Pressue up to 325 PSIG (liquids) and 125 PSIG (air). Construction materials include polysulphone flow tube with brass, SS or PVC end fittings.

Add to Quote

Series TT

Cost effective impeller flow meter for light viscosity fluids

Nema 4x display enclosure with Pulse, 0-5 VDC, or 4-20mA transmitter outputs. Pressure ratings to 50

0 PSIG and full scale flow ranges from 15 to 50 GPM. Connection sizes from 1/2-inch to 1/inch NPT or flange, and construction materials include stainless steel shaft with acetal copolymer impeller. Optional clear flow cover available which allows for view of process.

Add to Quote

Series IP

Ultra high capacity insertion paddle wheel for light viscosity fluids

Insertion connection sizes from 1-inch to 2-inch NPT or BSP with full scale flow ranges from 5 to 99

,000 GPM. Pulse, 0-5 VDC or 4-20mA transmitter outputs with Nema 4x display enclosure and pressure ratings up to 1200 PSIG. Made out of 316 SS Body and PEEK Paddle Wheel with optional battery powered LCD that displays rate and total.

Add to Quote

Series GT

Turbine flow meter with display

Battery powered turbine meter with digital display of rate, total or both. Can be applied to water o

r oil. Full scale flows from 10 GPM to 200 GPM with connection sizes from 1/2-inch to 2-inches. Construction materials include aluminum, brass, stainless steel, nylon and PVC. Optional Pulse or 4-20mA outputs.

Add to Quote

Series PD

Positive displacement flow meter with superior accuracy

Accuracy is 0.5% of rate with full scale flow ranges from 2.6 to 90 GPM. Connection sizes range from

1/2-inch to 2-inch NPT BSP, sanitary or flange. Includes Pulse, 0-5 VDC or 4-20mA transmitter outputs with Nema 4x display enclosure. Pressure rating up to 1200 PSIG with optional battery powered LCD that displays rate, total, contacts, relays, batch control and retransmission signals. Construction materials include 316L SS or Aluminum body and PEEK internals.

Add to Quote

Series TM/I, TM/P, TM/C

Thermal mass flow meters for aggressive and non-aggressive applications

Transmitter outputs include open collector contacts, 5 VDC or 4-20mA for flow/temperature or flow/pr

essure. Includes Nema 4x enclosure rated for all classes, divisions and groups. Accuracy is 0.5% of rate with pressure ratings up to 10,000 PSIG. No moving parts or flow obstructions with optional battery powered LCD that displays rate and total. Full scale flow ranges from 0.15 GPH to 400 GPM and 0.015 SCFH to 2000 SCFM, with connection sizes from 1/4-inch to 48-inch flange, tube fitting, sanitary, stub-welded or hot tap. Made out of 316L SS (standard) with other materials available.

Add to Quote

Series CM

Coriolis mass flow meter

Battery powered mass flow meter with Nema 4x enclosure rated for all classes, divisions and groups a

nd 4-20mA output for flow and temperature. Accuracy is 0.5% of rate, turn down/rangeability is 30:1, and maximum pressure is 5000 PSIG.Connection sizes from 1/2-inch to 3-inches (flanged, sanitary/tri-clam or threaded) with full scale flows from 1/3 GPM to 260 GPM. Made out of stainless steel with no moving parts and no obstruction of flow path. Optional integral or remote digital display of rate, total or both available. Applicable for food, milk, paints, slurries, water, oils, chemicals or other fluids containing debris, waste fluid, air or gas.

Add to Quote

Series SP/R, SP/T, SP/X

Paddle wheel flow meter with digital indicator and totalizer

Pipe T body connection sizes from 1/2-inch to 4-inch flange, union NPT or plain end, with full scale

flow ranges from 15 to 800 GPM. Battery powered LCD that displays rate and total with removable easy to clean sensor. Nema 4x display enclosure with pressure ratings up to 200 PSIG. Made out of PVC with stainless steel shaft. Optional pulse output and insertion style with mountaing bracket available.

Add to Quote

Series V1, V2

Vortex shedding flow meter

No moving parts with standard 4-20mA output. Full scale flow ranges from 5 to 2500 GPM and connectio

n sizes from 1/4-inch to 8-inches flange, wafer, NPT or tube. Construction materials include PVC, CPVC, polypropylene and PVDF. Optional removable sensor, ultrasonic sensing style and high purity service available.

Add to Quote

Series KM

Affordable flow rate indicator

Reads in GPM and LPM scale with clear flow tube that allows for view of process and scale. Pressure

ratings up to 145 PSIG with full scale flow ranges from 6 GPH to 220 GPM and connection sizes from 1/4-inch to 3-inch NPT or BSP. Construction materials include PVC, polysolphone or PVDF. Usable with water, oil, air and gas.

Add to Quote

Series U3, F3, M3

High capacity indicators, switches and transmitters

Easy to read large scale design that rotates. Low pressure drop with spring loaded mechanical design

that can mount in any orientation. Connection sizes from 1/4-inch to 3-inch NPT, BSP or flange and full scale flow ranges from 1 to 250 GPM. Optional 4-20mA transmitter and field adjustable switches for hazardous and non-hazardous locations.

Add to Quote

Series PW

Low flow paddle wheel flow meter

LCD display of rate, total or both with Nema 4x enclosure. Pressure taings up to 300 PSIG and temper

ature ratings up to 200 degrees F. Battery powered, 6 to 24 VDC, or AC/DC transformer. Full scale flow rates from 300 ML/M to 200 GPM and connection sizes from 1/8-inch to 2-inch NPT or tube connections. Construction materials include PVDF, PVC or Polypropylene. Optional 4-20mA, pulse, or 0 to 10 VDC outputs.

Add to Quote

Series RM

Durable rotameter OEM flow rate indicator

Construction materials include glass, acrylic, PVC or polysulphone for the body and 316 stainless st

eel, PVC, polysulphone or Hastelloy C for the float. Connection sizes from 1/8-inch to 2-inch NPT or tube connections. Full scale flow rates from 0.065 ML/M to 175 GPM. Pressure ratings up to 150 PSIG and temperature ratings up to 200 degrees F. Optional shielded/armored and panel mount available.

Add to Quote

Series DP

Low cost portable battery powered clamp-on ultra-sonic flow meter for liquids with entrained air or debris

Operates in any pressure with a battery powered LED that reads velocity. Non-intrusive, non-contact

with process. Low cost wedge flow sensor and 4-20mA DP transmitter that includes no moving parts. Full scale flow range from 50 to 950,000 plus GPM (189 to 3,595,750 LPM plus). Optional remote display available.

Add to Quote

Series BM Beverage Meters

Affordable and accurate measurement

Add to Quote

Series DH Impellar Flow Transmitter

Cost effective low flow pulse output for fluids, air and gases

Add to Quote

Level Sensors

For indicators, switches and transmitters

Add to Quote

Differential Pressure Flow Transmitters

4-20mA output liquid flows

Add to Quote
